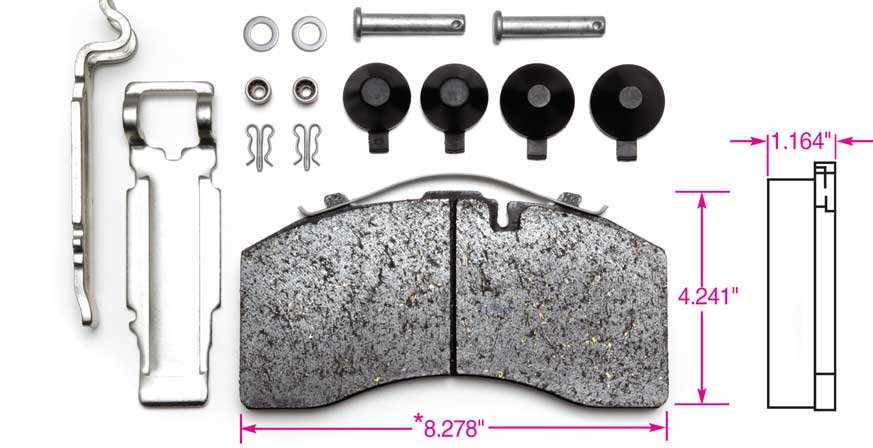

D1369

Bendix ADB22X, ADB22X-LT

Highway: MBS# DSHP1369
Cross Ref.: Bendix K070796, K129276, K182235

Severe Service/Transit: MBS# DSTP1369
Cross Ref.: Bendix K109113

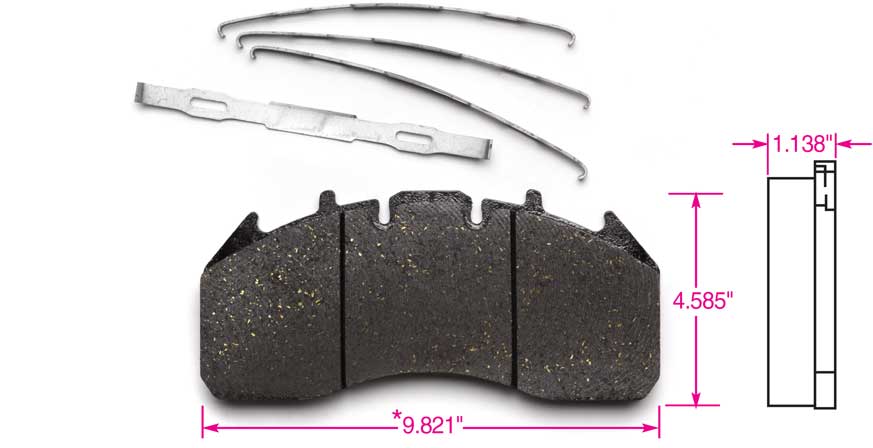

D1311

Meritor EX225H2

Highway: MBS# DSHP1311
Cross Ref.: Meritor KIT2252H2CD, MMD1311AF

Severe Service/Transit: MBS# DSTP1311
Cross Ref.: Meritor KIT2252H2BA,KIT2252H2DA, KIT2252H2CE

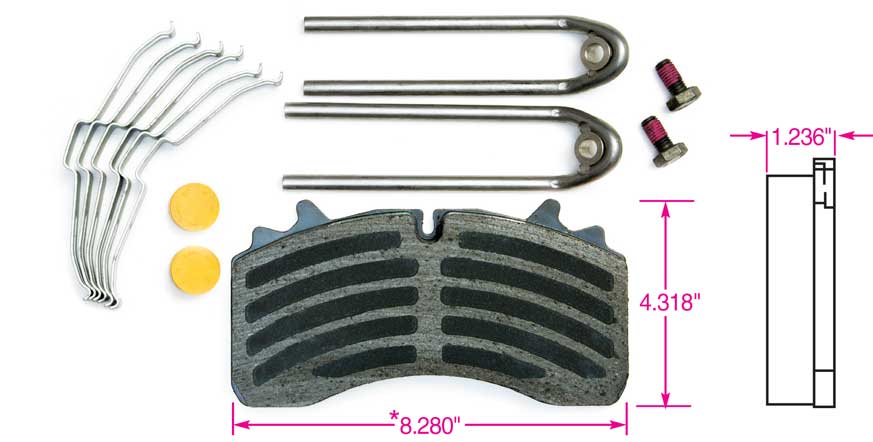

D1777PAN22

WABCO PAN22

Highway: MBS# DSHP1777PAN
Cross Ref.: WABCO 640 225 922 2, Hendrickson S-32676-1 , Meritor 1299796

Severe Service/Transit: MBS# DSTP1777PAN

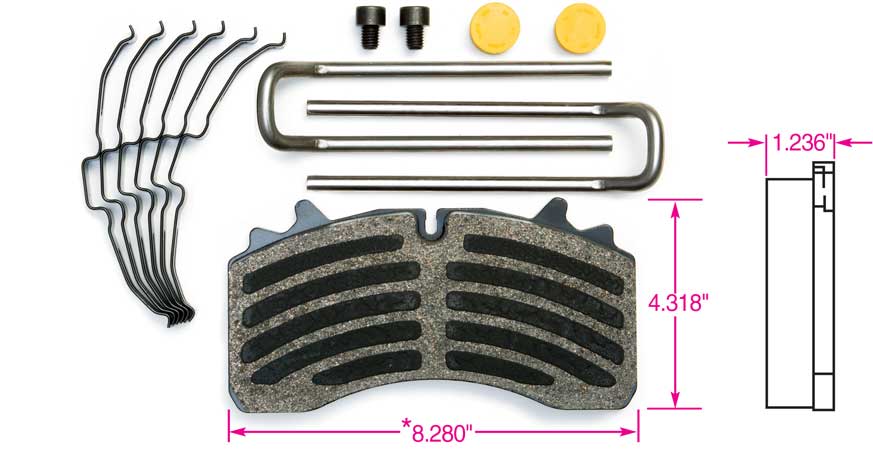

D1777MAXX22T

WABCO MAXX22T

Highway: MBS# DSHP1777MAX
Cross Ref.: WABCO 640 222 927 2, Hendrickson S-35303-1

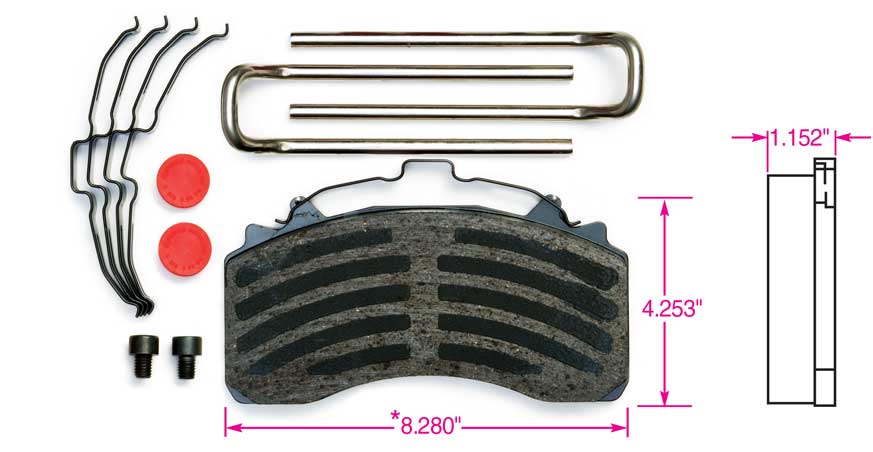

D2061

WABCO MAXXUS

Highway: MBS# DSHP2061
Cross Ref.: WABCO 640 322 934 2

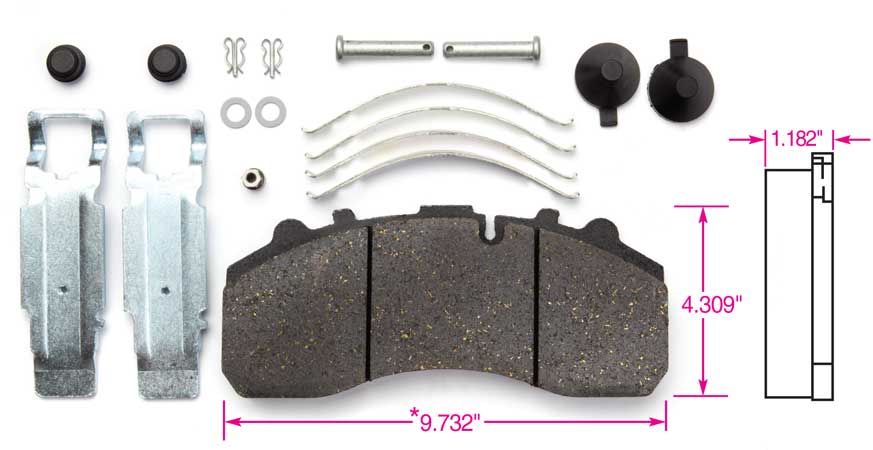

D1203

Knorr/Bendix SB-7, SN-7

Highway: MBS# DSHP1203
Cross Ref.: Bendix K109249, 5013257, Knorr K046771K50

Severe Service/Transit: MBS# DSTP1203
Cross Ref.: Knorr K059965K50, MAN81.50820-6070, NEW FLYER 6447341

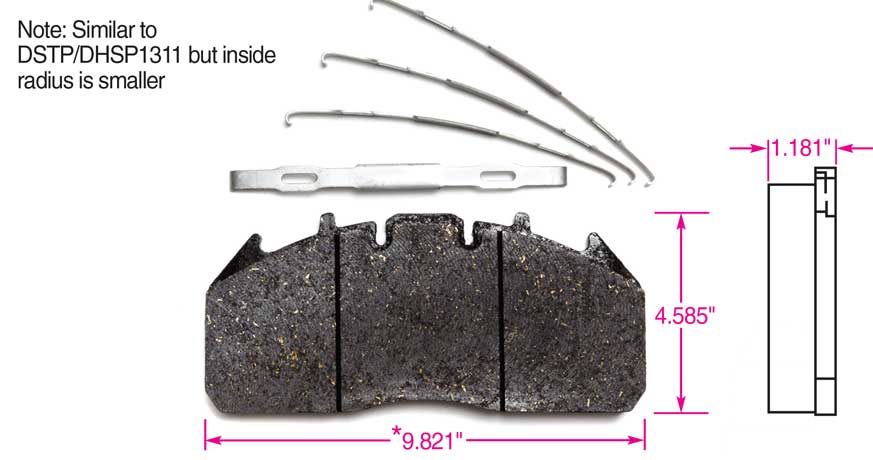

D1323

Lucas-Meritor ELSA-2

Severe Service/Transit: MBS# DSTP1323
Cross Ref.: Meritor KIT2252H3CE, Meritor KIT2252H3BE, MMD1323AF

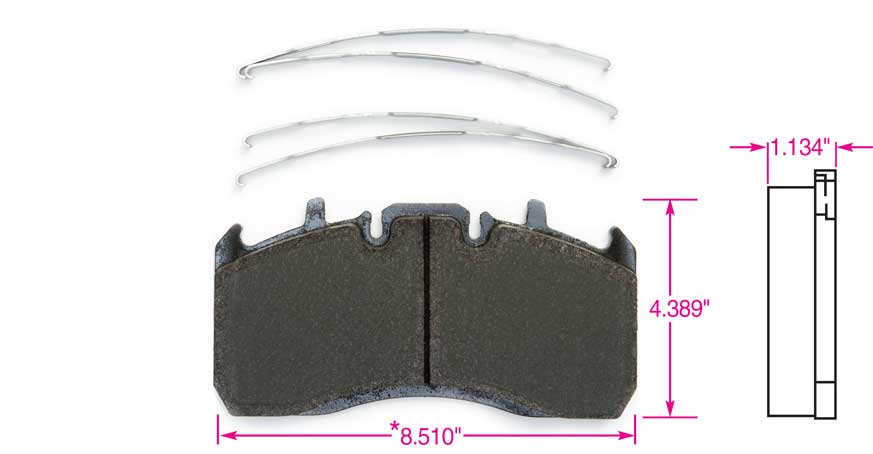

D1370

Meritor EX225H3

Highway: MBS# DSHP1370
Cross Ref.: Meritor KIT2252L2CD,  MMD1370AF

Severe Service/Transit: MBS# DSTP1370
Cross Ref.: Meritor KIT2252L2DA

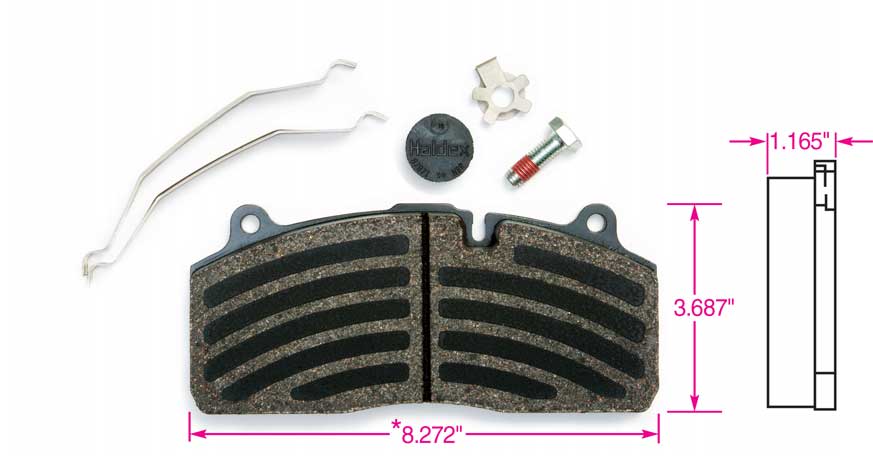

D1583

Haldex DB22LT

Highway: MBS# DSHP1583
Cross Ref.: Haldex 79022040, Hendrickson S-30560-8

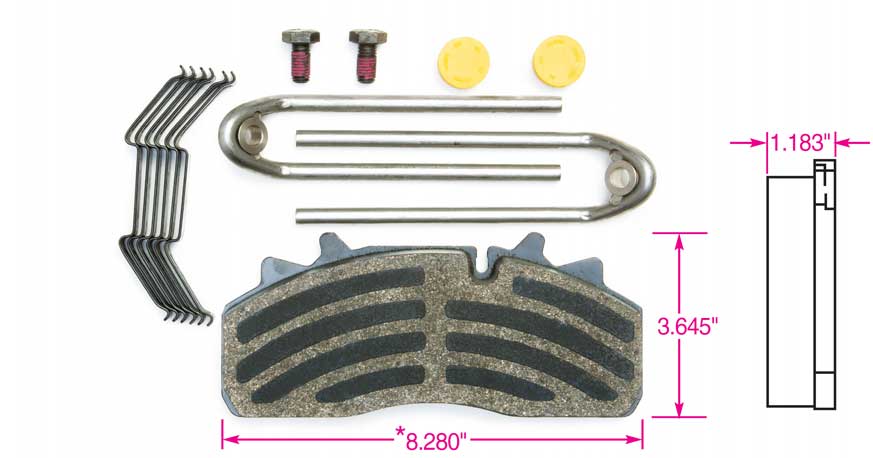

D1438

WABCO PAN19-1

Highway: MBS# DSHP1438
Cross Ref.: WABCO 12999737VT

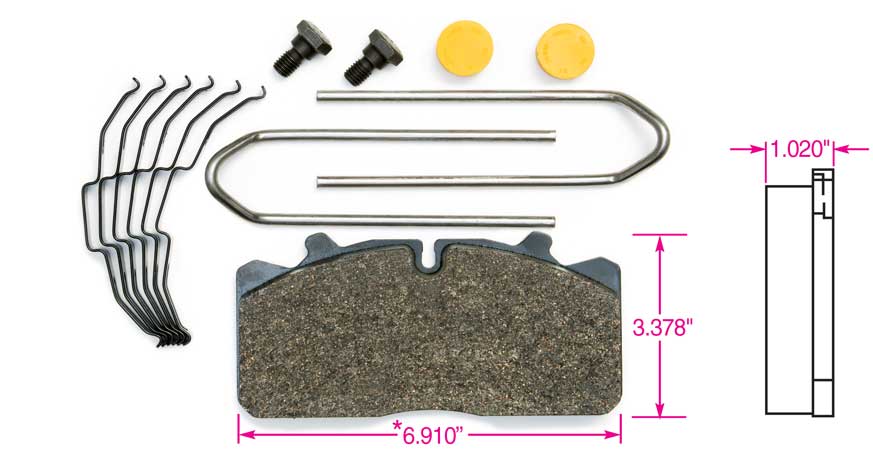

D1518

WABCO PAN17

Highway: MBS# DSHP1518
Cross Ref.: WABCO 12999703VT, Meritor 12999806

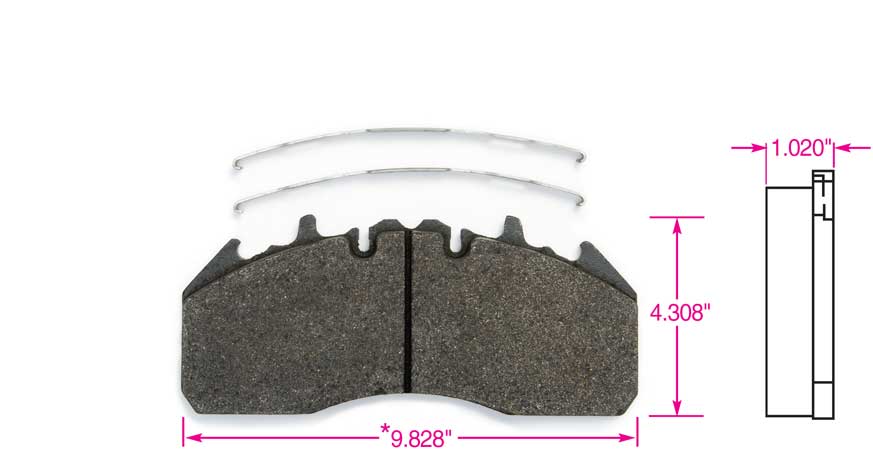

D1708

Meritor ELSA 225-3

Severe Service/Transit: MBS# DSTP1708
Cross Ref.: Meritor 2252HBMA703

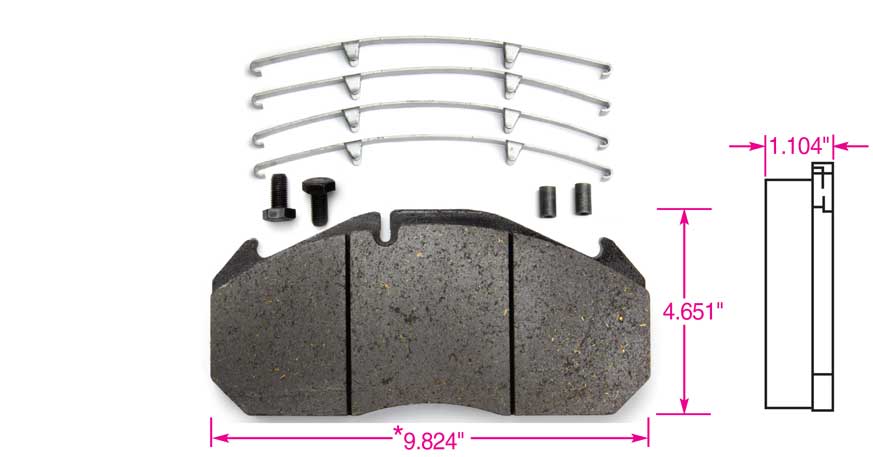

D1407

Meritor D-Elsa 1

Severe Service/Transit: MBS# DSTP1407
Cross Ref.: Meritor MDP5110, MMD1407AF

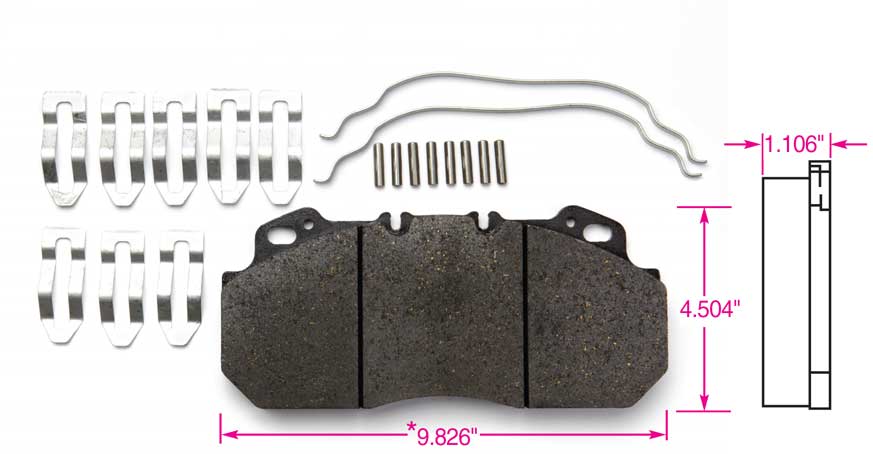

D1312

Meritor D-Elsa 2

Severe Service/Transit: MBS# DSTP1310
Cross Ref.: Meritor MDP5060

*Height and width dimensions are of backing plate.    Cross refernces are specific to either Highway or Severe Service pads.
