MV23 - Marathon Value
MV23 - Marathon Value

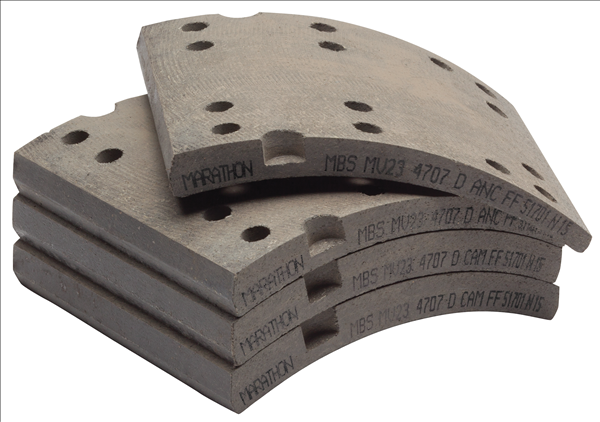

Standard grade brake linings designed for 23,000 lb axle load applications
![](./images/varied/UB_BoxtruckSM.jpg)
Marathon MV23 standard grade linings meet the requirements of FMVSS 121 dynamometer testing standards at 23,000 lbs. MV23 is designed for price sensitive fleets that require a 23,000 lb material. MV23 is also suited for low powered brake systems that require a more aggressive lining.
![](./images/varied/MV-23_brake.png)
![](./images/BestinClass.png)
![](./images/leafN.png)

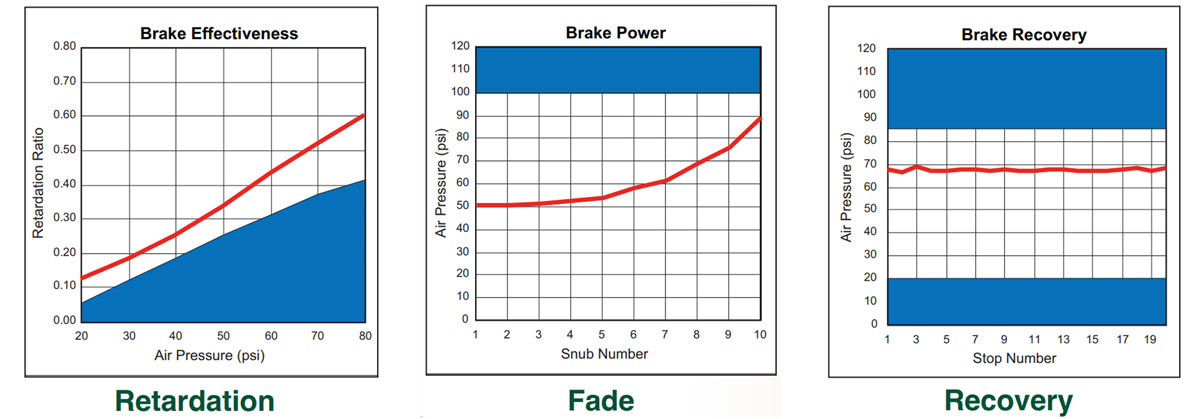

Test Results
TOO MUCH POWER!![](./images/varied/MV-23_FMVSS.jpg)
Testing conducted in accordance with FMVSS 121 criteria @ 23,000 lb axle load: 16 1/2 x 7 inch S-cam air brake; type 30 air chamber and 5.5 inch slack adjuster and a 20.8 inch tire rolling radius. Shaded area indicates non-compliance.
