Heavy Duty Shock Absorbers
for Truck, Trailer & Severe Duty Applications

For more than 30 years America’s heavy duty truck, bus and severe service fleets have trusted Marathon Brake Systems to provide Best-in-Class friction materials that deliver stopping power and the longest service life. Now Marathon is introducing a complete line of heavy duty shock absorbers for these same fleet applications. Marathon shock absorbers are designed and built to provide a comfortable, smooth ride and reduce vibrations from suspension systems. These hydraulic shocks feature rugged construction with reinforced welds, tough end mounts and durable piston seals to provide consistent performance over the life of the shock.

Top-Performing Hydraulic Shock Design

Hydraulic stop design outperforms market leader
Seals and valves facilitate piston dampening in both up and down movements
Smoothness of vibration absorption improves comfort and durability
Consistent performance over life of shock improves tire wear and lessens component wear

High Performance Hydraulic Oil

High viscosity oil provides excellent characteristics through all types of weather and extreme heat generated in severe service applications.

Marathon Shock Information

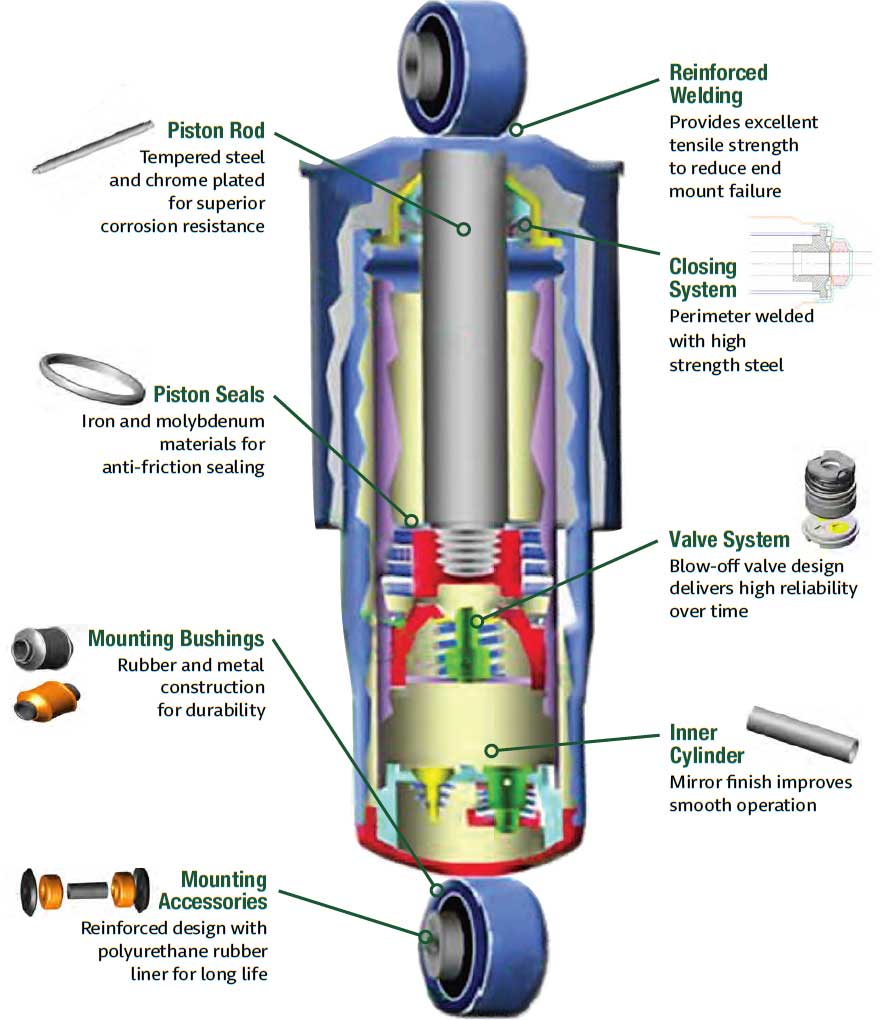

Marathon Shock Cut-Away Marathon Shock Advantages Part Number Cross-Reference Issues with Worn Shock Absorbers

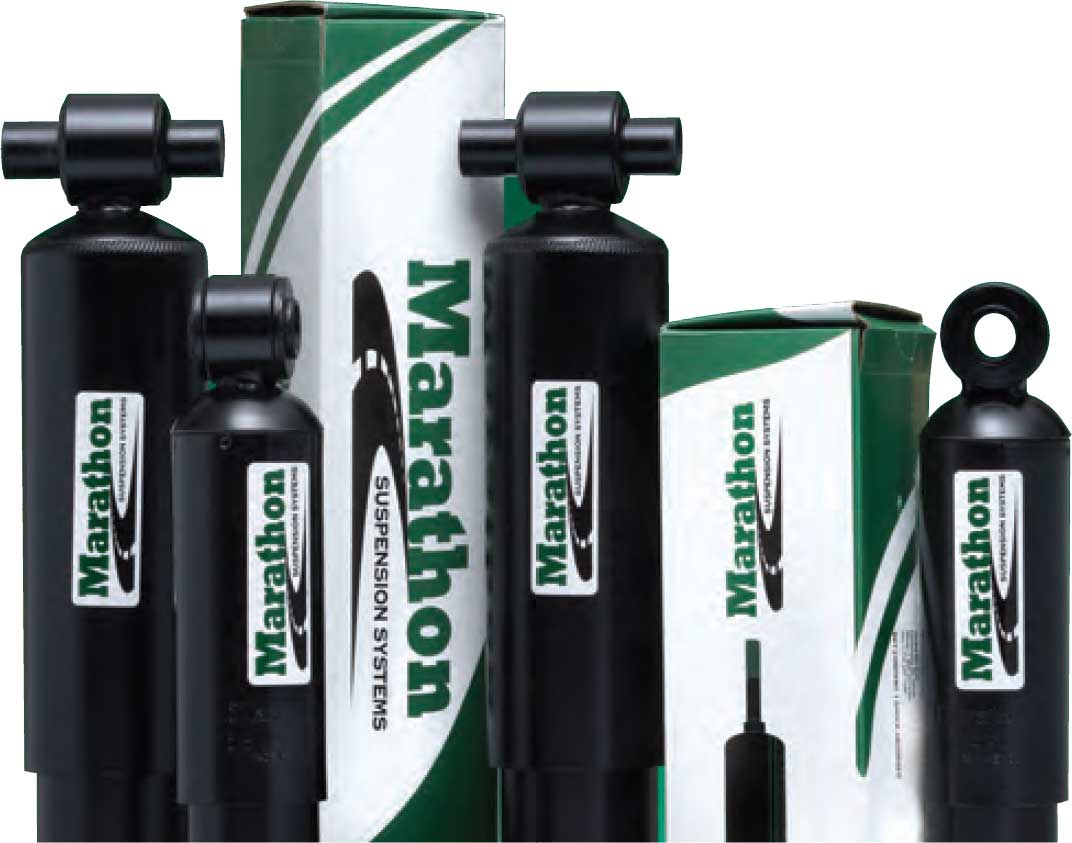

Marathon Shocks Deliver

Heavy duty design for long service life
Models for wide range of over-the-road and
severe duty applications
Tough, high tensile strength end mounts
Reinforced welded perimeter and end mounts
for greater durability
Chrome finished tempered steel piston rods
protect from corrosion
High viscosity hydraulic oil for consistent
performance over life of shock
Durable piston seals for optimum performance
and life
Design offers increased hydraulic oil
capacity to protect internal components
Greater driver comfort and safer driving
Prevent premature tire wear
Protect vibration sensitive components

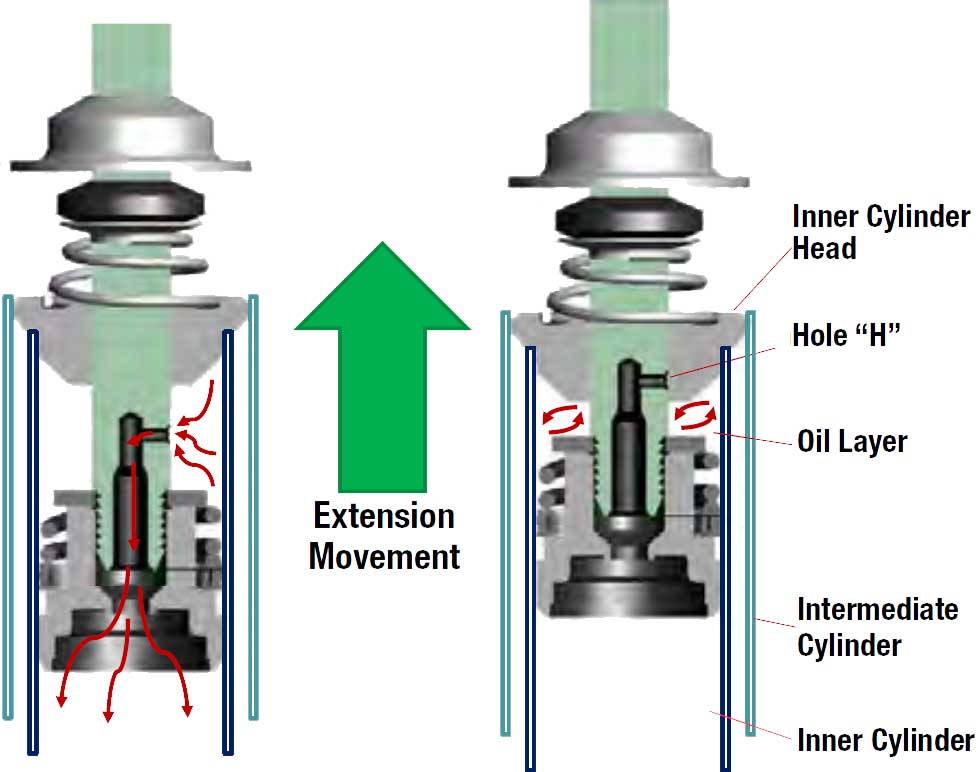

Hydraulic Bumper Detail

During the extension movement, the shock’s hydraulic stop design has the top hole covered by the inner cylinder head (shown on right) creating a layer of oil that protects the shock from topping out and damaging components.

Marathon Shocks
Designed & Built for the Long Haul

Marathon Shock Advantages

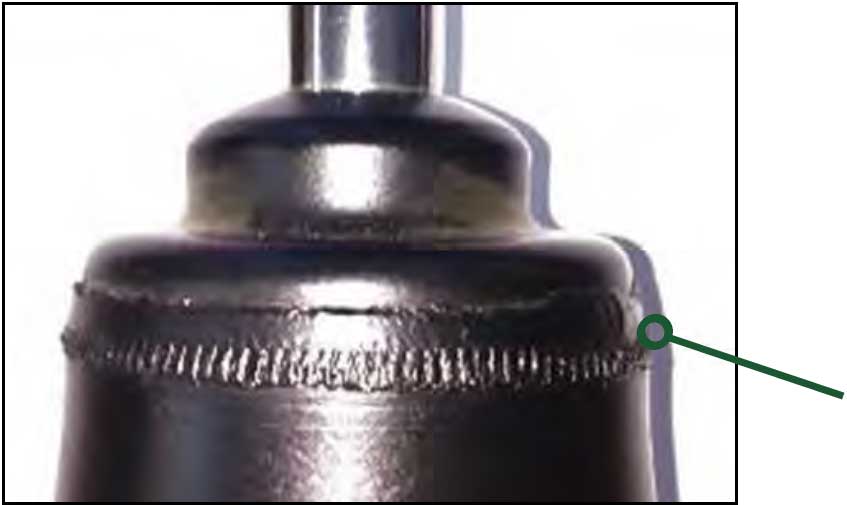

Welded Perimeter for Closing System

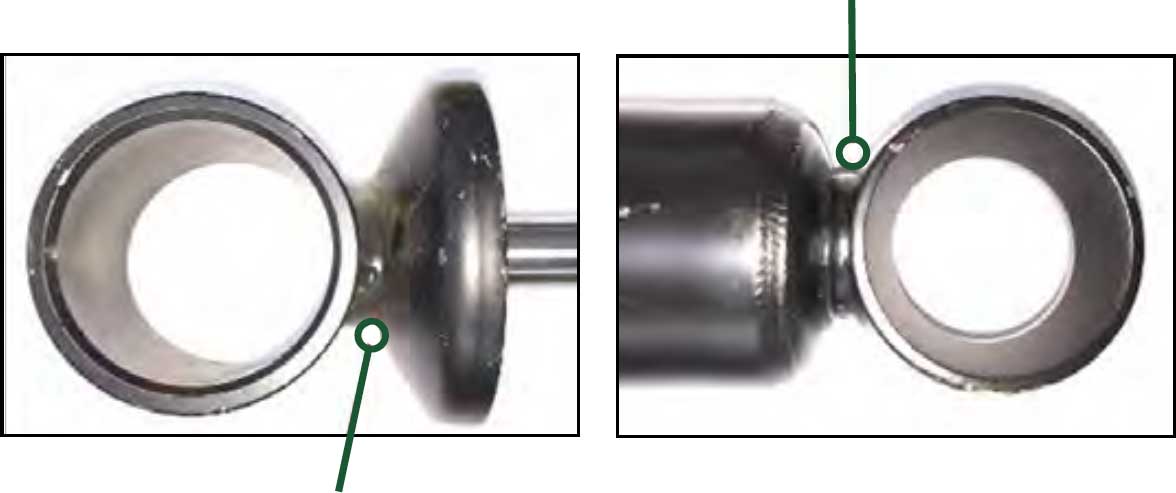

Reinforced Projection Welded Zones

8,000 lbs. maximum tensile strength of mounting

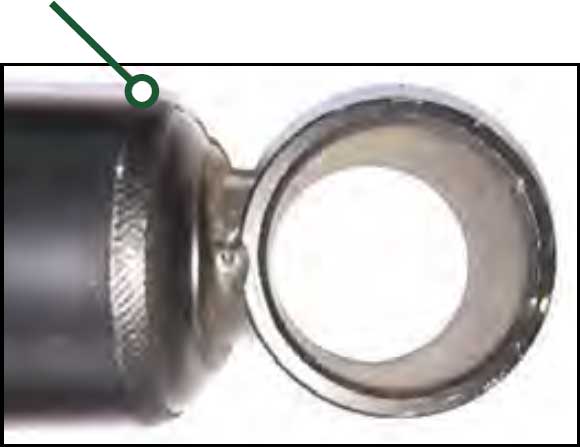

End Cap - Outer Tube Welding

12,000 lbs. maximum tensile strength (Assembly tested under 10-15 psi air pressure submerged in water without leaks)

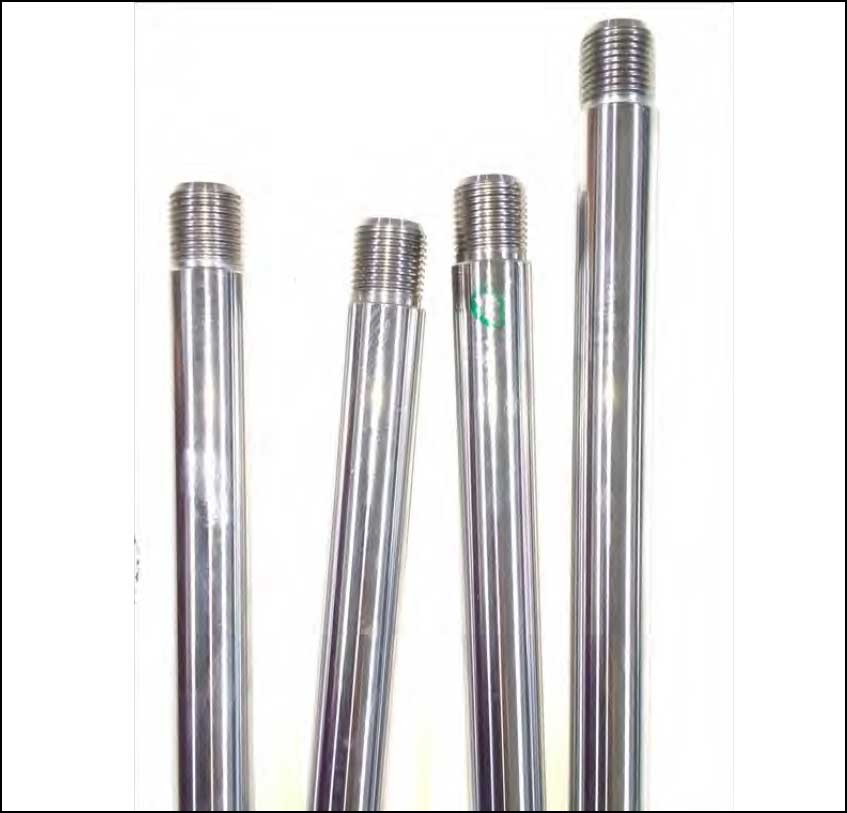

Super Chrome Piston Rods

Temper hardness of 30-55 Rc
Chrome plated surface hardness 67 Rc min., 0.0004" min. thickness
Dehydrogenized at 218°C for 70 minutes
Surface finish of Ra:6μ" and Rz:45μ"
Salt spray test for 24 hours minimum

Part Number Cross Reference

MARATHON	GRC	MONROE	DESCRIPTION	POSITION
53039-MB	85006	65482	Freightliner FL50, 60, 70, 80 - Business Class	Rear
53101-MB	83038	66122	Freightliner Cascadia, Century Class	Cabin
53106-MB	83127	66636	Saf Holland air suspension for trailer RLSA228 (RLSA-228-4214, -4215, -4216, -4814, -4815, -4816) Freightliner 16-14668-000"	Rear
53108-MB	85029	65451	Conventional Truck and Tractor with Long Chest. Hendrickson A-2212, B-25174, S-2212, S-23315"}">International Navistar Series 9300, 9300i, 9400 y 9400i, Series 9900, 9900i, 9900ix - Conventional Truck and Tractor with Long Chest. Hendrickson A-2212, B-25174, S-2212, S-23315	Rear"}">Front Rear
53109-MB	83125	66884	MACK series CX (Vision)"}">Hendrickson series HAS MACK series CX (Vision)	Rear
58049-MB	85000	65419	Hendrickson Vantraax ( HKARL 46K, HKAT 46K)	Rear
58064-MB	85070	65159	Kenworth T2000, T440, T470, T600, T600A, T600B, T602, T660	Front
58085-MB	85072	65504	Hendrickson Series Firemaax ( Air suspensions Firemaax 240, 480, EX 242, EX 482, Air suspension models 230)	Rear
58092-MB	85954	65157	International series Prostar y 8000	Front
58093-MB	85033	65400	Peterbilt series 378,379,385	Rear
58094-MB	85064	65512	Hendrickson 665693, 665758, B-21936, S-21936, S-23649, HT250US (Standard Mount Models)"}">Great Dane Trailer HENS-23649 Hendrickson 665693, 665758, B-21936, S-21936, S-23649, HT250US (Standard Mount Models)	Rear
58095-MB	85066	65486	Mack series CX (Vision), CHN	Rear
58096-MB	85067	65495	Kenworth C500, C500B, C500K, C540 y C550, ICON 900	Rear
58097-MB	85069	65468	Kenworth T300, T270, T370, T400	Rear
58098-MB	85045	65511	Hendrickson Intraax ( AAL AAL 23K, 25K y 30K, AANL 23K, AAZL 23K / 46K Models)	Rear
58099-MB	85062	65101	Peterbilt series 320, 357, 365	Front
58100-MB	85933	65497	MACK 14QK-422M, 20469001,20469002, 20485632, 20485633"}">Hendrickson Airtek Series MACK 14QK-422M, 20469001,20469002, 20485632, 20485633	Front
58101-MB	85938	65512	Reyco Suspension Models 25 ARTUL-18A-FS, -19A-FS, -20A-FS, -21A-FS, -22A-FS,-23A-FS, -24A-FS, -18-FS, -19-FS, -20-FS, -21-FS, -22-FS, -23-FS, -24-FS"}">Hendrickson HT250US (Remote and Standard Mount Models) Reyco Suspension Models 25 ARTUL-18A-FS, -19A-FS, -20A-FS, -21A-FS, -22A-FS,-23A-FS, -24A-FS, -18-FS, -19-FS, -20-FS, -21-FS, -22-FS, -23-FS, -24-FS	Rear
58102-MB	85012	65113	International Binder, Cargostar	Front
58103-MB	85900	65436	Kenworth C500, C500B, C500K, C540 y C550, K100, K100E, K125, K300, T2000,T300	Front
58105-MB	85088	65486	Mack series CXN	Rear
58106-MB	85098	65494	Mack series CXN	Front
58107-MB	85958	65148	Freightliner Cascadia, Columbia, Coronado	Front
58113-MB	85052	66607	Volvo 3919569, 83176222, RC SA5052	Rear
58114-MB	85934	65493	Ridewell Corporation Air-Rides RAR-240, RAR-240W, RAR-243	Rear
58115-MB	85937	65523	Kenworth Icon 900 , T2000, T440, T470, T600, T600A, T600B, T602, T600	Rear
58116-MB	85001	65102	Kenworth C500, C500B, C500K, C540 y C550, ICON 900	Front
58117-MB	85931	65492	International Series 9200, 9200i	Front
58118-MB	85003	65409	International series 1000 y 2000	Rear
58119-MB	85061	65494	Mack series CX (Vision), CHN	Rear"}">Front Rear
58120-MB	85918	65148	Freightliner Century Class - C112, C120, CST112 y CST120	Front
58121-MB	85013	65420	Ford LL, LLA, LTA, LTL, LTLA, LA, LS y LST -Conventional Cabin, Series AeroMax (A, AT, AAT, 8500, 9500)International series 4000 y 9800"	Rear
58122-MB	85030	65421	Ford Series AeroMax (A, AT, AAT, 8500, 9500) International Navistar Series 5000, 5000i - Heavy Duty Conventional Truck and Tractor	Rear"}">Front Rear
58123-MB	85924	65147	Navistar Series 9200, 9200i - Tractor & Truck, Series 9300, 9300i, 9400 y 9400i - Series 9900, 9900i, 9900ix Conventional Truck and Tractor with Long Chest	Front
72014-MB	83128	66608	Hendrickson Vantraax	Rear
72051-MB	83008	66145	Peterbilt series 367,377,379	Cabin
78013-MB	85323	65416	Hendrickson Intraax/ VOLVO	Rear
78015-MB	85724	65490	Freightliner Cascadia	Rear
78031-MB	85311	65402	International Series 400, 500, 600, 700, y 900	Rear
78076-MB	85738	65500	AAZL 23K / 46K, Models AAZNT 23K / 46K / 69K, HT230T, HT300T y N-HT300T, HT250U y N-HT250U, HKA250, HKAT 50K"}">Hendrickson Models AAEDL, Models AANT 23K, Modelss AAT 23K, 25K, 30K, Models AAZL 23K / 46K, Models AAZNT 23K / 46K / 69K, HT230T, HT300T y N-HT300T, HT250U y N-HT250U, HKA250, HKAT 50K	Rear
78077-MB	85310	65404	Kenworth C500, C500B, C500K, C540 y C550, K100, K100E, K125, K300, T2000,T300	Rear
78078-MB	85320	65103	Freightliner Classic/ClassicXL	Front
