Brake Shoe ID

9" Diameter10" Diameter12" Diameter12-1/4" Diameter14-1/2" Diameter
15" Diameter 15-1/8" Diameter16-1/4" Diameter16-1/2" Diameter18" Diameter

14 1/2 inch diameter

Arvin Meritor

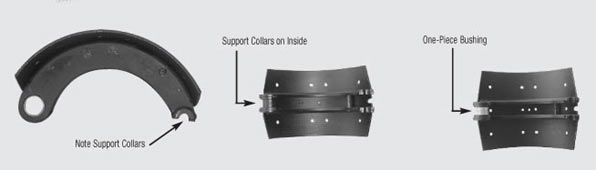

W Series Type 1&3
Shoe Width FMSI No. Euclid
Hardware Kit No.
8" 4541C
10" 4592AFB
Arvin Meritor
W Series Brake • Type 2 • Only Available In 10"
Shoe Width FMSI No. Euclid
Hardware Kit No.
10" 4592A E10870
Arvin Meritor
W Series Brake
Shoe Width FMSI No. Euclid
Hardware Kit No.
5" 4398D E10841 or E10866
6" 4228F E10841 or E10866
